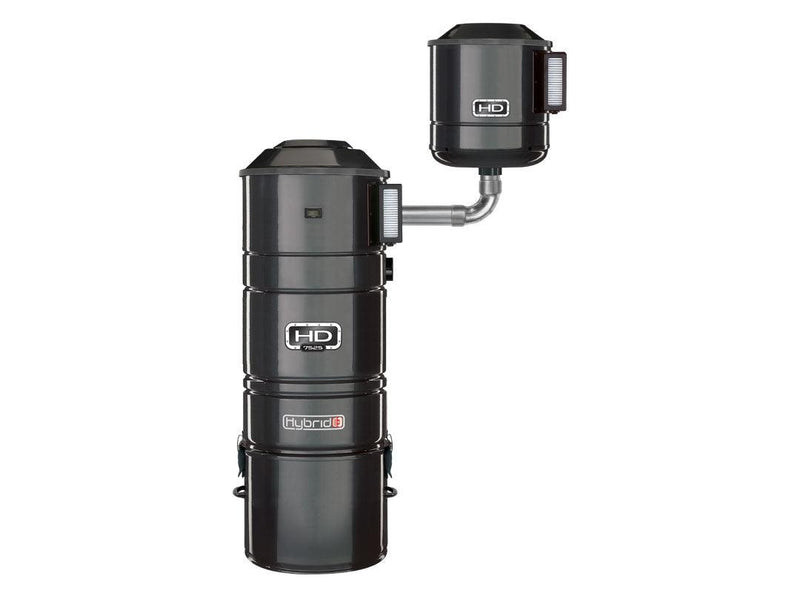

Central Vacuum – HD7525 Hybrid (Generic) | Heavy-Duty Dual-Motor Power for Large Installations
Unmatched power and versatility with a hybrid dual-motor system—ideal for very large homes, multiple inlets, and long hose networks.
Product Information
The HD7525 Hybrid Central Vacuum is engineered for high-performance cleaning in very large homes or commercial-grade settings. Its dual-motor system can be connected in series for maximum suction—ideal for Retraflex® retractable hose systems—or in parallel for increased airflow over extended piping networks.

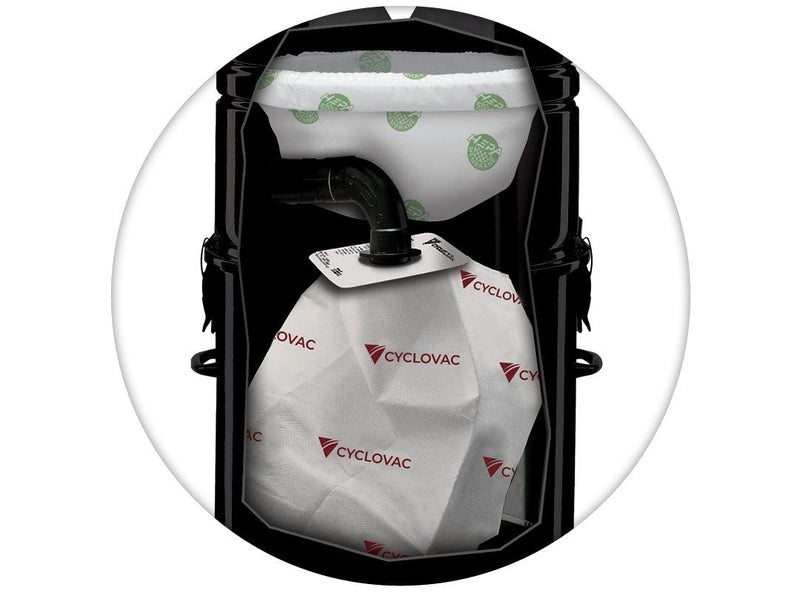

Whether you're dealing with heavy debris, a long network of ducts, or multiple hose inlets, the HD7525 adapts to your layout. Its HEPA-type filter captures 99.5% of fine particles, while the Cyclofiltre™ antimicrobial-treated filter and carbon dust system ensure ultra-clean air.
⚠️ Note: This model must not be installed in an enclosed space. Refer to the user manual for detailed installation guidelines.
Recommendations
-
Type of Residence: Large homes and heavy-duty installations
-
Approximate Area: m² (ft²) — To be confirmed
-
Best for: Long hose runs, multiple inlets, or Retraflex® systems
Warranties for Your Peace of Mind
-
15-Year Warranty on motors and electronics (or 750 hours of use)
-
Lifetime Warranty on the unit body
-
Domestic use only
Technical Specifications
Feature | In Series | In Parallel |
---|---|---|
Airwatts | 1254 | 1254 |
Decibels | 73 dB | 71 dB |
Air Flow | 145 CFM / 247 CMH | 248 CFM / 422 CMH |
Water Lift | 230 in / 5,842 mm | 137 in / 3,480 mm |
Maximum Amps | 14 A | 14 A |
Voltage | 240 V | 240 V |
Turbines | 4 | 4 |
Main Unit Specifications
Feature | Value |
---|---|
Series | Hybrid |
Bag Capacity | 5.8 US gal / 22 L |
Canister Capacity | 6.2 US gal / 23.3 L |
Height | 41.8 in / 106.2 cm |
Diameter | 14.1 in / 35.8 cm |
Weight | 37.5 lb / 17 kg |
Second Unit Specifications
Feature | Value |
---|---|
Bag Capacity | — |
Canister Capacity | — |
Height | 17 in / 43.2 cm |
Diameter | 11 in / 27.9 cm |
Weight | 15.8 lb / 7.2 kg |
Key Features
-
Versatile Motor Configuration – Use in series for max suction or parallel for large spaces
-
Unmatched Suction Power – 1254 airwatts and up to 230 in. water lift
-
HEPA-Type Filtration – Captures 99.5% of particles at 0.3 µm
-
Cyclofiltre™ Antimicrobial Filter – Prevents mold, bacteria, and allergens
-
Carbon Dust Filter – Patented system keeps motor residue from your environment
-
Engineered for Retraflex® – Optimized for retractable hose systems and multi-inlet setups
-
No Enclosure Installation – Requires open ventilation for safe operation
CENTRAL VACUUM WARRANTY
All Cyclovac central vacuum motors and electrical components are covered for up to 15 years, depending on the model. The body and tank are covered for life while the unit remains in its original installation.
ACCESSORIES WARRANTY
Cyclovac brand accessories are covered by a 5-year warranty. Other attachments carry a 3-year warranty, with electrical powerheads covered from 1 to 10 years depending on the manufacturer.
Thank you for choosing Cyclovac – advanced vacuum power made in Canada.
Register your product and explore full warranty details at: cyclovac.com
