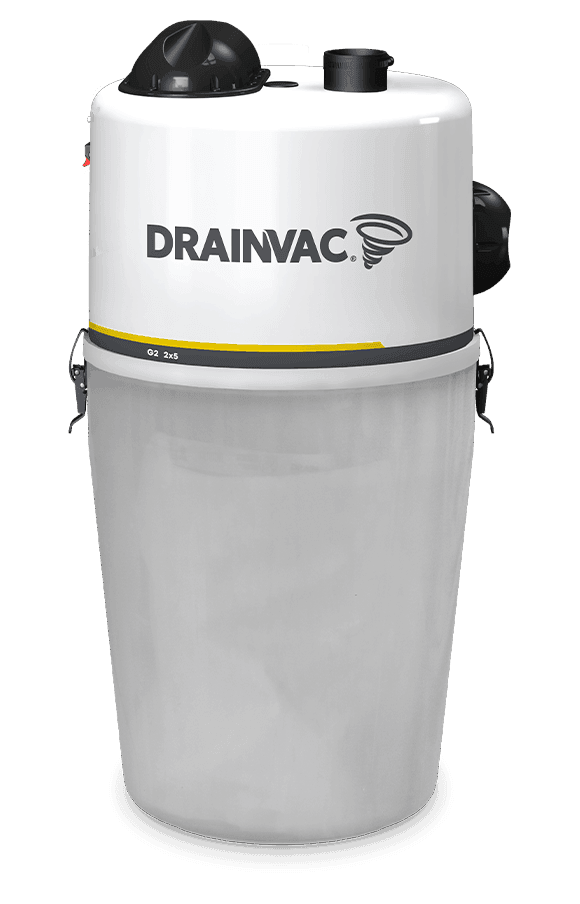

The Drainvac Generation 2 2×520 AW is a dual-motor powerhouse delivering ultra-high suction in a compact, soundproofed unit — built for homes up to 790 m² (8,500 ft²) with a large 41L canister and muffler included.
Best for: Large homes requiring maximum suction power with the convenience of a high-capacity, low-maintenance system.
Two independent motors combine to deliver exceptional cleaning performance across large floor areas. The soundproofed casing and included muffler keep operation quiet, while the semi-transparent 41L canister lets you monitor debris levels at a glance. A permanent SMS filter provides long-lasting filtration without replacement.
⚠️ Safety note: Never vacuum flammable or gaseous material. Not compatible with Activac 3® filter. See user manual for full details.
⚠️ Maintenance note: Use of a dust bag and cage filter is mandatory — improper usage will void the warranty. Replace the dust bag when full. The cage filter can be hand-washed when the bag is changed — allow to dry completely before reinserting. Do not put in the dryer.
Technical Specifications
| Performance | |
|---|---|
| Airwatts | 2 × 520 AW |
| Air flow | 135 CFM |
| Water lift | 170 in |
| Noise level | 72 dB |
| Electrical | |
| Motors | 2 |
| Max amps | 13.5 A |
| Voltage | 230 V |
| Dimensions & Capacity | |
| Canister capacity | 9 gal / 41 L |
| Height | 70 cm |
| Diameter | 38 cm |
Key Features
- Dual-motor suction — Two 520 AW motors combine for ultra-high cleaning power across large floor areas
- Outside exhaust vent — Expels air outside the home for the cleanest possible indoor air quality
- Whisper-quiet — Soundproofed casing and included muffler minimize noise during operation
- Easy monitoring — Semi-transparent 41L canister shows debris levels without opening the unit
- Permanent SMS filter — Long-lasting filtration with no replacement needed
- 2-ply paper dust bag included — Ready to use out of the box
Recommendations
- Type of residence: Large houses
- Cleaning area: Up to 790 m² (8,500 ft²)
- Filtration: Permanent SMS filter — dust bag and cage filter mandatory
Warranty
- Motors: 10 years
- Circuits: 15 years
- Casing: Lifetime
- Labor: 5 years at an authorized Drainvac dealer or plant
- Accessories: 5 years
- Replacement parts: 1 year
Domestic use only. Shipment of items and travel to a retailer or manufacturer are at customer expense. See owner's manual for full details.
Frequently Asked Questions
Is a dust bag required?
Yes — a dust bag and cage filter are both mandatory. Operating without them voids the warranty. Replace the bag when full and hand-wash the cage filter at the same time. Do not put the filter in the dryer.
Can I use an Activac 3® filter with this unit?
No — this model is not compatible with the Activac 3® filter. See the user manual for compatible accessories.
What does outside exhaust vent mean?
Instead of recirculating exhaust air back into the room, the unit vents it outside the home entirely — eliminating any risk of fine dust or motor residue re-entering your living space.
How does the dual-motor system compare to a single-motor unit?
Two motors working together deliver significantly higher water lift (170 in vs 138 in on the single-motor 800 AW model), making this better suited for homes with longer duct runs or multiple floors.
